| Panel Line |
home > 제품소개 > Panel Line |

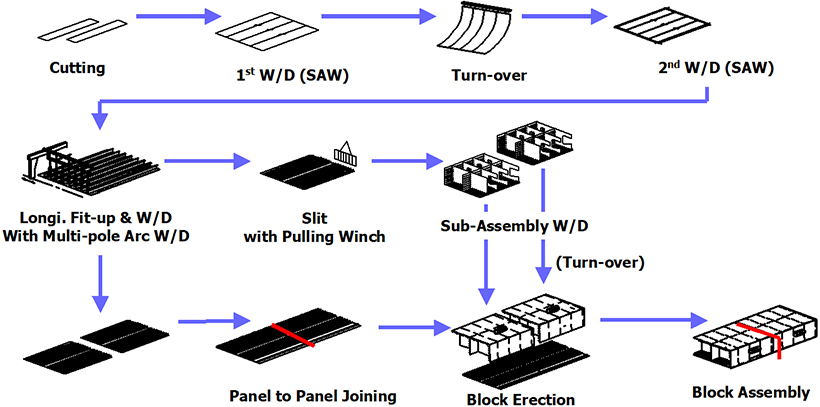

1) Ship Block Work Flow
2) Plate Joining Machine
| Description |
Specification |
| Structure Type |
Gantry |
| Tack Welding Method |
FCAW (Manual Welding) |
| Current Range |
Max. 350 A |
| Traveling Speed |
Max. 15 m/min |
| Traversing Speed |
17 m/min |
| Plate Pressing Power |
8Ton/Ea x 4Ea x 2Set = 64Ton |
| Slewing Angle |
-90°, 0°, +90° |
| X-Y-Z Slide |
X-Y Dir Stroke : ±150mm |
| Z Dir Stroke : 400mm |
| Pulling Magnet |
2.5 Ton x 4Ea = 10Ton ( 315mm) |
| Hydraulic Unit |
Working 140Kg/cm2 |
3) Butt Welding Machine
| Description |
Specification |
| Welding Method |
SAW 2 Poles - 2 Heads |
| Current Range |
DC 300~1,500 A |
| DC 300~1,200 A |
| Welding Wire |
4 ~ 4.8 mm |
| Welding Speed |
0.5~2.0 m/min |
| Carriage Speed |
Max. 30 m/min |
| Structure Type |
Gantry |
| Seam Tracking |
Laser Sensor |
| Flux Supply & Recovery |
Auto Recycling System |
4) Longi. Stiffener Fit-up Machine
| Description |
Specification |
| Welding Method |
FCAW |
| Current Range |
Max. 350 A |
| Welding Wire |
1.2~1.6 mm |
| Welding Speed |
100~800 mm/min |
| Traveling Speed |
Max. 30 m/min |
| Structure Type |
Gantry |
| Seam Tracking |
Mechanical Guide Roller |
5) 40-Poles Stiffener Welding Machine
| Description |
Specification |
| Welding Method |
FCAW Twin Tandem
(5~10 Heads) |
| Current Range |
Max. 600 A |
| Welding Wire |
1.2 ~ 1.6 mm |
| Welding Speed |
0.1 ~ 1.5 m/min |
| Traveling Speed |
Max. 30 m/min |
| Return Speed |
Max. 10 m/min |
| Structure Type |
Gantry |
| Seam Tracking |
Mechanical Guide Roller |
| Welding Database |
Memory & Playback |
6) Robot Welding Machine
| Description |
Specification |
| Welding Method |
FCAW 1 Pole ? 12 Heads |
| Current Range |
Max. 600 A |
| Welding Wire |
1.2~1.6 mm |
| Welding Speed |
0.1~0.5 m/min |
| Traveling Speed |
Max. 10 m/min |
| Seam Tracking |
Touch Sensor, Arc Sensor |
| Structure Type |
Gantry |
| Robot Type |
5 Axies Articulated |
| Programming Type |
Off-line |
| Program Download |
LAN |
| Work Division |
Cell Controller |
|
